FORD E4OD / 4R100 KITS and PARTS

Welcome to our E4OD / 4R100 products page!

We offer basic and Deluxe kits, as well as individual parts for your transmission project.

Use the pictures below to identify the 1989-2005 E4OD/4R100:

The E4OD was produced from 1989-1998.

The E4OD was simply renamed "4R100" in 1999.

NOTE:

The kits and parts on this page DO NOT fit the 2003 and later 5R110W (Torque Shift) model used in the following vehicles:

2009 5.4L gas E150, E250 and E350 vans

2004-2008 6.0L diesel E250and E350 vans

2004-2009 V10 6.8L gas E250 and E350 vans

2004-2005 6.0L diesel Excursion

2003-2009 5.4L gas F250, F350, F450 and F550 Super Duty pickups

2003-2009 6.0L diesel F250, F350, F450 and F550 Super Duty pickups

2007-2009 6.4L diesel F250, F350, F450 and F550 Super Duty pickups

2003-2009 V10 6.8L gas F250, F350, F40 and F550 Super Duty pickups

visa/mastercard logo

24 Hour Secure Ordering Online!

INSTRUCTION

video ultra set

DELUXE SUPER KIT for FORD E4OD

YEARS 1989 - 1995

item# DLXSKTE4OD-1

$599.99
FREE SHIPPING!

This kit includes:

1. Master Overhaul kit with all friction and steel plates

2. Superior Shift Correction kit with new booster sleeve and valve

3. Intermediate heavy duty sprag assembly, 45 lug,

4. Sonnax overdrive piston spiral snap ring

5. Roller and spring assembly, low reverse

6. pump bushing

7. 2 sun gear / driveshell bushings

8. Extension housing bushing

9. filter, 2 wheel drive type

10. Filter, 4 wheel drive type

11. Intermediate band

12. Intermediate servo assembly



* The Solenoid Pack is NOT included in the kit. You must select and order it from the individual parts section below.



video ultra set

DELUXE SUPER KIT for FORD E4OD / 4R100

YEARS 1996 - 2005

item# DLXSKTE4OD4R100-2

$689.99
FREE SHIPPING!

This kit includes:

1. Master Overhaul Kit with all friction and steel plates, item# 26006EG

2. Superior shift correction kit with booster sleeve and valve, item# S36165ES

3. Intermediate heavy duty sprag assembly, 45 lug, item# A36652B

4. Sonnax overdrive piston spiral snap ring, item# S36862

5. pump bushing, item# 76034

6. (2) sun gear / drive shell bushing, item# 36040

7. Extension housing bushing, item# A36066

8. Filter, 2 wheel drive type, item# 36010E

9. Filter, 4 wheel drive type, item# 36010EA

10. Intermediate band, item# B36022E

11. Intermediate servo assembly, item# A36905EA

12. (3) overdrive clutch friction plate, .078", 64 teeth

13. (6) reverse clutch friction plate, .078", 72 teeth (for 1996 and early 1997 models)

14. (2) intermediate clutch steel plate, .080"

15. Bonded piston set, overdrive and coast clutch, item# A3690AK



* The solenoid pack is NOT included in this kit. You must select and order it from the individual parts section below.



**Super Duty models require ext housing bushing, item#36066D and rear seal, item# 36074E listed in the IDIVIDUAL PARTS section below.

SHIFT KITS

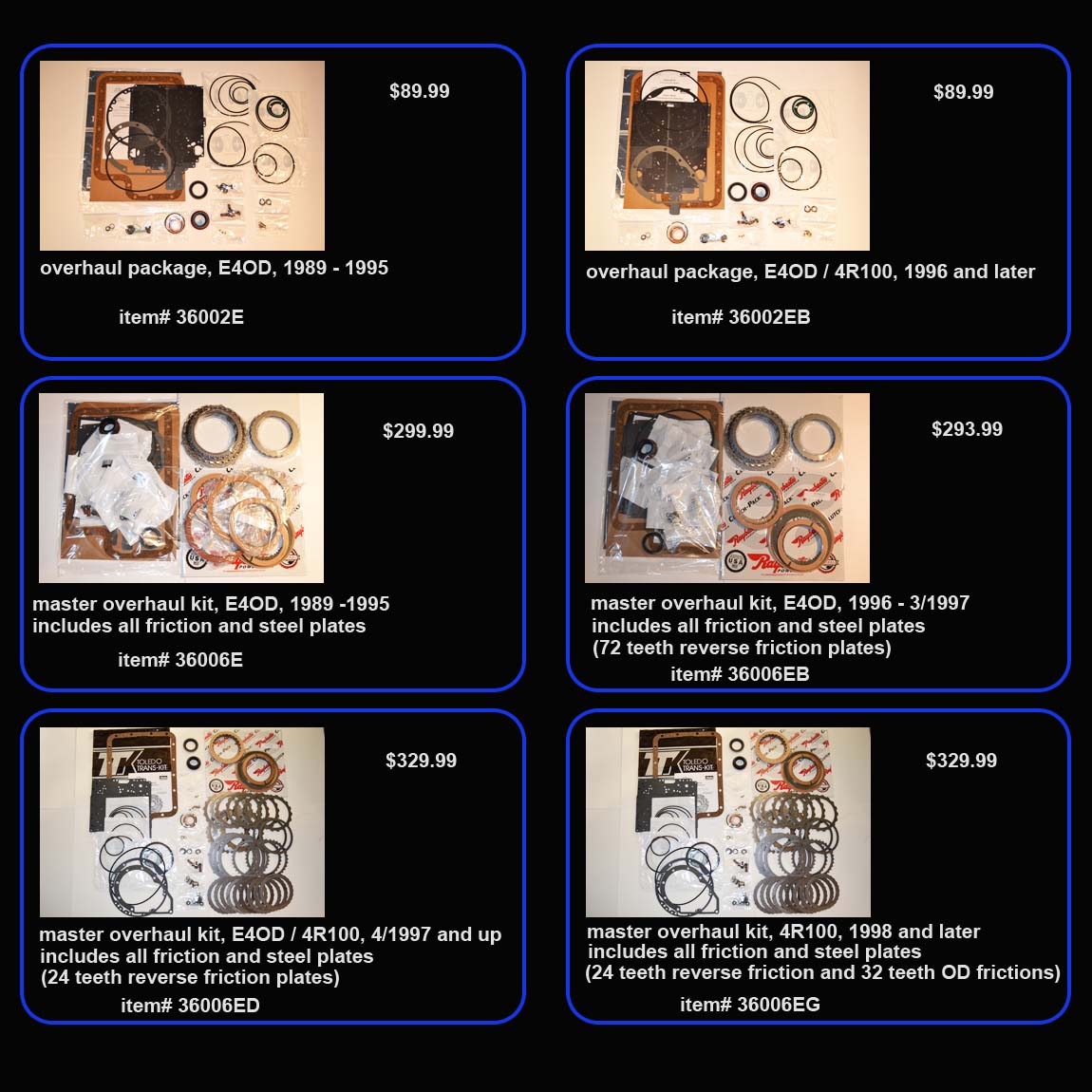

BASIC KITS

basic kits

INDIVIDUAL PARTS

FREE Shipping On Orders Over $100!

SOLENOID PACKS (NEW)

Discontinued

SOLENOID PACKS (reman)

BUSHINGS

METAL CLAD SEALS

BANDS

FILTERS

PISTONS

OVERDRIVE ROLLER CLUTCH and SPRAG

INTERMEDIATE SPRAG

REAR ROLLER CLUTCH

SNAP RINGS

HARD PARTS

TORQUE COVERTERS
